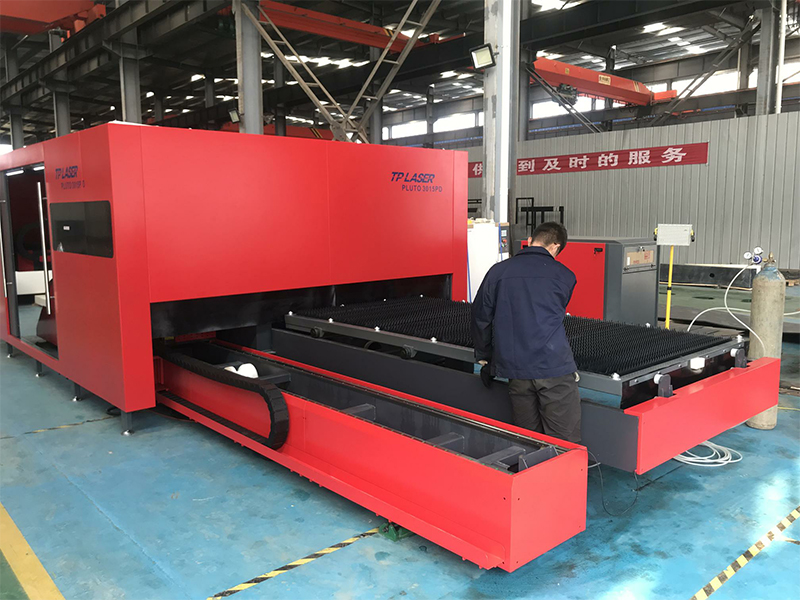

Spark P Open Type Dual Use Sheet & Tube Laser Cutting Machine 2kw-6kw

Spark P Open Type Dual Use Sheet & Tube Laser Cutting Machine 2kw-6kw Features

• High cost ratio, One machine can cut both plates and tubes, which can meet the 80% processing needs in the market.

• The tube welding bed, the design is more compact and reasonable, the rigidity and strength of the bed are greatly improved.

• Double Pneumatic Chucks, it's more stable to use and great sealing performance of the chucks ensures the durable use.

• All the main parts can be customized with your requirements.




Spark P Open Type Dual Use Sheet & Tube Laser Cutting Machine 2kw-6kw Parameter Details

Fully Annealed Frame

The bed body adapts the segmented rectangular tube welding bed with fully annealed treatment at over 600⁰. After tempering, the strength, rigidity and stability are guaranteed, the precision were tested and debugged which can make sure the precision can be maintained for a long time.

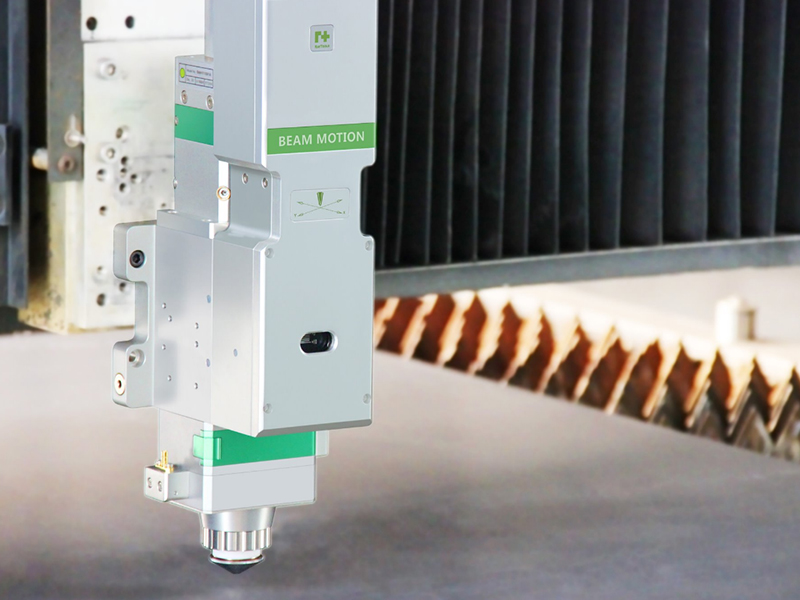

Smart auto focus laser head

Standard auto focus function, no need focus adjustment while changing sheet; Automatic tracking and accurately adjusting the focus according to the material thickness to ensure the best cutting effect of the whole board. Shorter perforation time, better perforation quality, high-speed cutting, saving time.

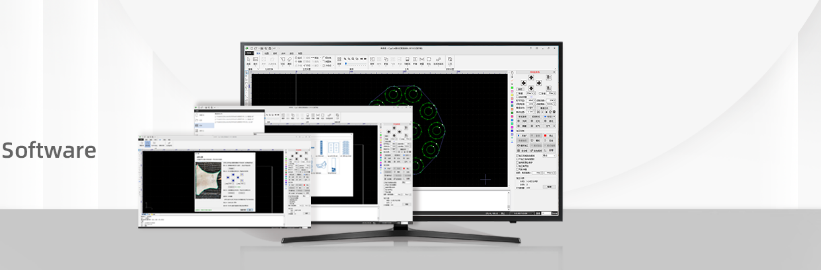

Intelligent CNC Operating System

It simplifies complex CNC machine operation and integrates CAD, Nest and CAM modules in one. From drawing, nesting to workpiece cutting all can be finished by a few clicks on big IPAD Screen. Realize the intelligent diagnosis, multi-threading operation, three-level perforation, laser energy control, adaptive edge-finding, automatic corner acceleration and deceleration, flight cutting, switching worktables, mechanical accuracy compensation etc.

Pneumatic clamp chucks

Pneumatic clamp design on both sides. The dual-chucks help reduce tube vibration to a minimum, guaranteeing high accuracy in even complex tube configurations at high cutting speed. Suitable for cutting a range of tube diameters from Ø20 mm to Ø220 mm and various wall thicknesses.

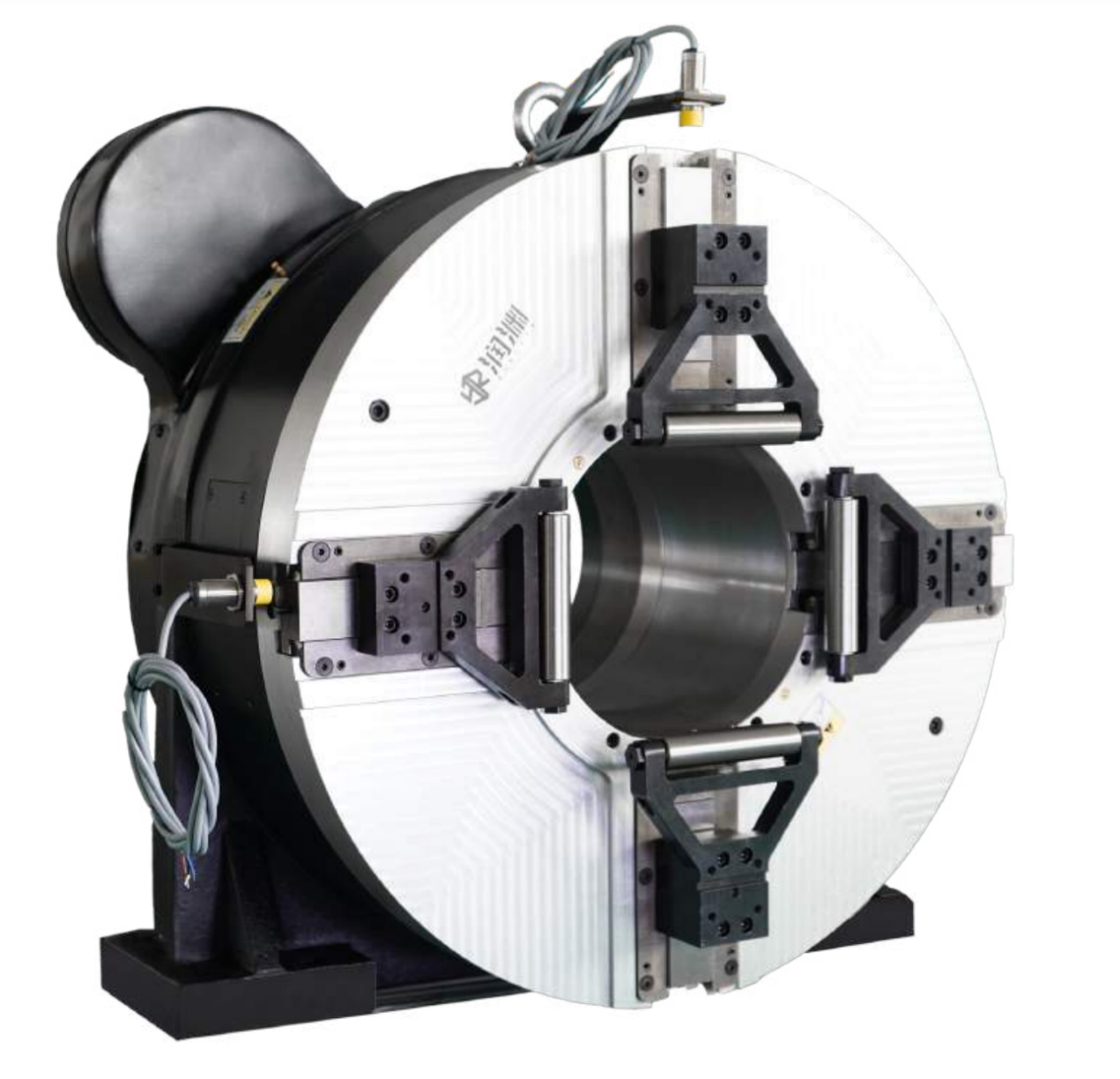

Front chuck

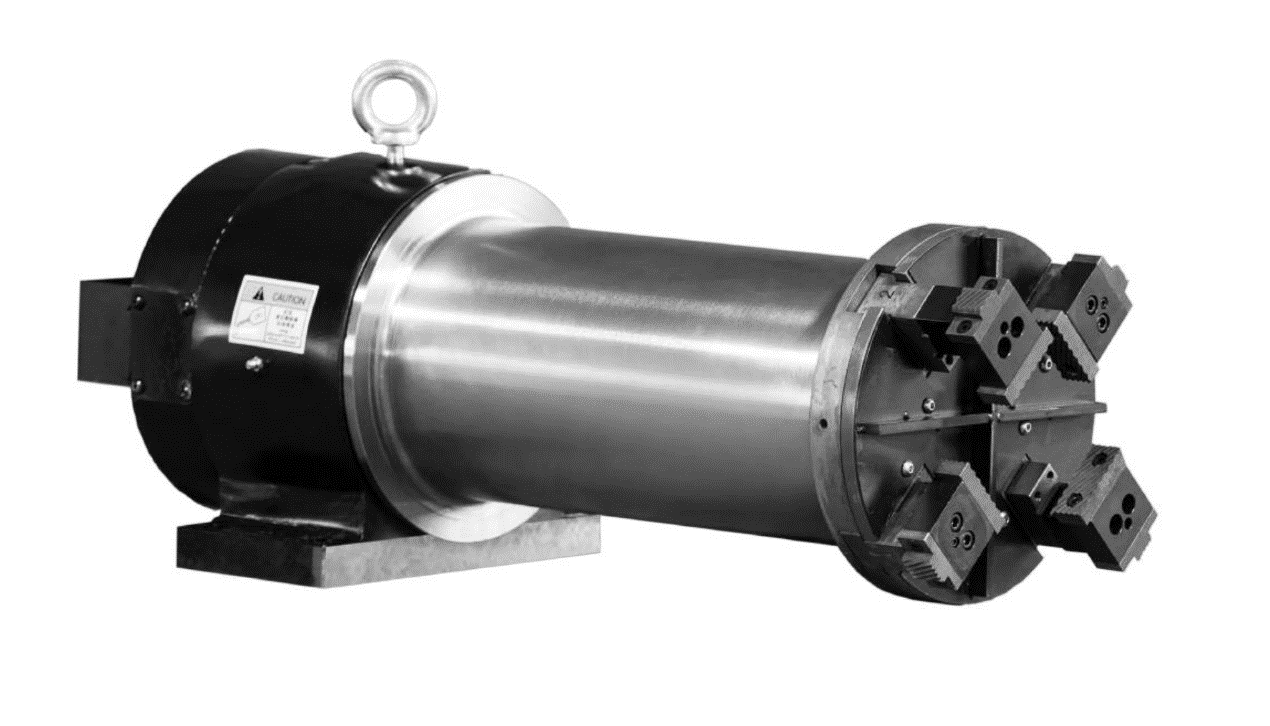

Back chuck

Fractional Automatic Support Technology

Applies the intelligent tube support design, which can solve the deformation problems in the process of long tube cutting.Equipped with two sets of variable-diameter support structures, which are automatically lifted by the cylinder to avoid the rear chuck in processing. When processing profiles with different diameters, manually turn the variable-diameter wheels to achieve fit and support for different-sized profiles. The variable-diameter wheels It can be supported every two degrees of rotation to reduce the diameter of the circumscribed circular tube by 2mm
