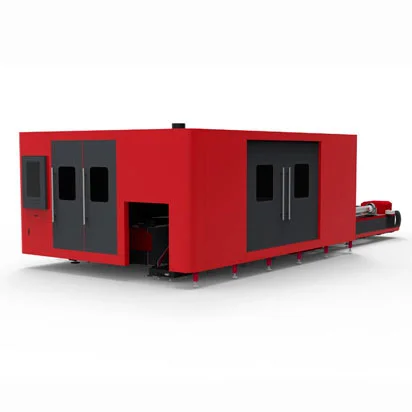

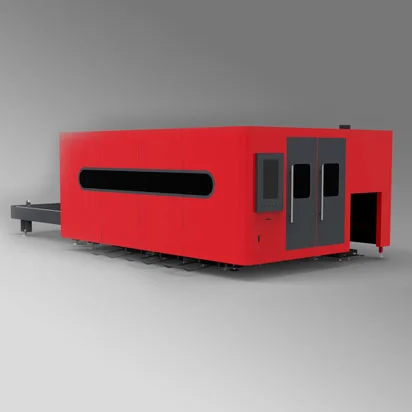

If you are looking for a machine which can cut both plates and tubes, our PLUTO PD series is your best choice. The enclosed and exchangeable platforms ensures a clean and safe working environment. The working table can be designed as your requirements. The pipe cutting length can be 6m, Two 220mm chucks make it possible for processing the 80% fabrication work in the market.
Dual-use, suitable for cutting a wider range of materials including metal plates and tubes, one machine can meet 80% of your fabrication needs.
Creat a safer working environment. The fully enclosed type with side open doors which is convenient for inspection the working process. It's okay for American and Europe standard.
Superior configurations. The tube welding bed, with high temperature and annealing treatment, no deformation for at least 10 years; The bed apply with the graphite anti-burning technology and dust/smoke exhaust system so that there will be almost no smoke when cutting.
Pneumatic chuck clamping, faster in speed with higher precision.
All the main parts can be customized with your requirements. ODM service is available.
MODEL NO. | PLUTO-3015P/4020P/6020P/6025P |
Processing area | 3050*1520mm/4000*2000mm/6000*2000mm/6000*2500mm |
Fiber power | IPG/RAYCUS/MAX OPTIONAL |
Control system | Cypcut control system |
Cooling mode | Water cooling and protection system |
X/Y-axis positioning accuracy | ±0.03mm |
X/Y-axis repositioning accuracy | ±0.02mm |
Max acceleration | 1.2G |
Compatible software | CorelDraw/AutoCAD/Photoshop/AI … |
Max traveling speed | 120m/min |
Driver system power | Y=1300W; X=850W; Z=400W, W1=2900W, W2=1800W, WY=1300W |
Support graphic format | .LXD/.DXF/.PLT/.AI/.Gerber/.DWG …. |
Transmit system | Dual Rack & Pinion type |
Operating temperature | 0-45℃ |
Operating humidity | 5-95% |
Delivery date | 30 days |
Payment | By T/T 30% deposit, and 70% payment before shipment |
The bed body adapts the segmented rectangular tube welding bed with fully annealed treatment at over 600⁰. After tempering, the strength, rigidity and stability are guaranteed, the precision were tested and debugged which can make sure the precision can be maintained for a long time.
Standard auto focus function, no need focus adjustment while changing sheet; Automatic tracking and accurately adjusting the focus according to the material thickness to ensure the best cutting effect of the whole board. Shorter perforation time, better perforation quality, high-speed cutting, saving time.
It simplifies complex CNC machine operation and integrates CAD, Nest and CAM modules in one. From drawing, nesting to workpiece cutting all can be finished by a few clicks on big IPAD Screen. Realize the intelligent diagnosis, multi-threading operation, three-level perforation, laser energy control, adaptive edge-finding, automatic corner acceleration and deceleration, flight cutting, switching worktables, mechanical accuracy compensation etc.
Pneumatic clamp design on both sides. The dual-chucks help reduce tube vibration to a minimum, guaranteeing high accuracy in even complex tube configurations at high cutting speed. Suitable for cutting a range of tube diameters from Ø20 mm to Ø220 mm and various wall thicknesses.
Front chuck
Back chuck
Fractional Automatic Support Technology
Applies the intelligent tube support design, which can solve the deformation problems in the process of long tube cutting.Equipped with two sets of variable-diameter support structures, which are automatically lifted by the cylinder to avoid the rear chuck in processing. When processing profiles with different diameters, manually turn the variable-diameter wheels to achieve fit and support for different-sized profiles. The variable-diameter wheels It can be supported every two degrees of rotation to reduce the diameter of the circumscribed circular tube by 2mm
