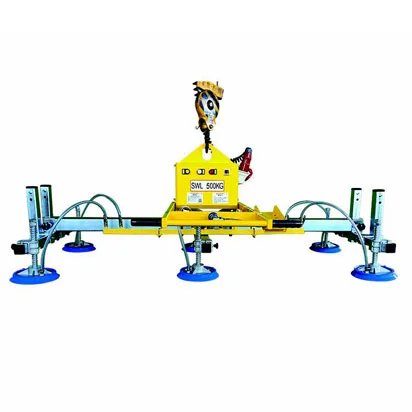

AC Type Vacuum Suction Lifter

Vacuum lifter / Vacuum Suction Lifting Machine

• For 500kg or below, we apply with pneumatic type, which apply with pure pneumatic system, no need to connect electricity, no charge, pneumatic lifting and pneumatic adsorption. For 500KG or above, we apply the electric type which is more safe and durable use




• We adopting German Becker large-flow vacuum pump with extremely large flow and strong suction, which is safe and reliable, The vacuum pads we adopt high strength wear resistant acrylonitrile-butadiene rubber which with longer quality guarante period for 18 monthes




• The suction cup is made of cast aluminum with one time high pressure die casting molding, which is light weight, high strength, detachable suction cup rubber, easy to replace environmental friendly.




Diverse Lifting Equipment for Meeting Your Needs

• Three types to be designed as per your acutal needs, pneumatic type, electric type or battery type. For 500kg or below, we apply with pneumatic type, which apply with pure pneumatic system, no need to connect electricity, no charge, pneumatic lifting and pneumatic adsorption. For 500KG or above, we apply the electric type which is more safe and durable use.




• Customerized size and lifting solutions, The pads quantity and size and vacuum pads position etc. details according to your actual use. Sucker position can be adjusted to meet size changes of different plates.




• For some sheet with oil or uneven surface, especially for thin metal plates, our sucker device with special ball head design which can adsorb the material in uneven condition. And if the material with oil, actually it is better for our rubber have better air tightness.




• Folk job also available.




Special Designs for Ensure Safty

• Equiped with check valve and large capacity accumulator, when in the accidental power failure, the workpiece can still remain in the sucker position for 5-30 minutes for your handling.




• Vacuum leak alarm system of the vacuum sheet lifter for sale, which can ensure that the equipment works safely above the standard vacuum.




• Special ball head design for our vacuum cups which can adsorb the material in uneven condition. And if the material with oil, actually it is better for our rubber have better air tightness.




• For Vacuum Pads design, Normally our laser machine factory uses pads with 2 sizes, one is Diameters 300mm, one is diameters 230mm, diameters 300mm can load 200kgs/pcs, and Diameters 230mm can load 100kgs, if the weight is 1000kgs, so we need at least 5 pcs of the Diamters of 300mm, normally will use 6pcs. For each device, we will consider with some extra capacity to make sure the safety to use.







Parameters and Technical Details of Our Vacuum Lifting Equipment
